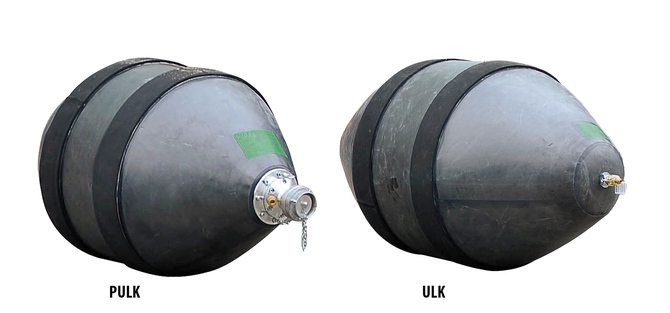

Cone Pipe Stoppers ULK and PULK - 2 bar

Cone pipe stoppers have in comparison with classical pipe stoppers different construction but their use is the same. They are mainly used during repair and maintenance work, accidents and the leak test of pipe- lines. This construction allows their use for all profiles, also egg-shapped, rectangular and many others. These pipe stoppers are made of quality rubber. Therefore they have good chemical resistance, high age-resistance, low weight, and they are simply reparable.

Product catalog

Technical parameters

Cone pipe stoppers ULK - 2 bar

Type		ULK 15/40	ULK 25/60	ULK 30/80	ULK 40/100
Part-No.		1140	1141	1142	1143
Pipe diameter	mm	150 - 400	250 - 600	300 - 800	400 - 1000
Operating pressure	bar	2	2	2	2
Back pressure	bar	1	1	1	1
Total length	mm	900	1100	1550	1950
Weight	kg	3	4,3	10,5	14

Cone test pipe stoppers PULK - 2 bar

Type		PULK 15/40	PULK 25/60	PULK 30/80	PULK 40/100
Part-No.
Pipe diameter	mm	150 - 400	250 - 600	300 - 800	400 - 1000
Operating pressure	bar	2	2	2	2
Back pressure	bar	1	1	1	1
Total length	mm	1000	1200	1650	2050
Weight	kg	4	11,3	21,5	25
Bypass		1“	2“	2"	2,5“

Cone Pipe Stoppers ULK and PULK - 2 bar

Technical parameters
