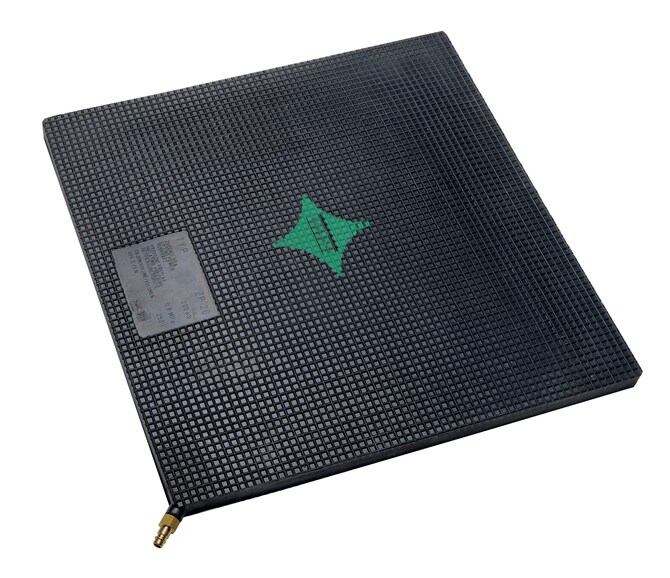

These bags are made of top-quality rubber and Kevlar fibres. The standard set consists of five different models with the lifting force from 3 to 30 metric tons.
Lifting bags ZP-8 bar
Type |
|
ZP 3 |
ZP 6 |
ZP 10 |
ZP 20 |
ZP 30 |
Part-No. |
|
1801 |
1802 |
1803 |
1804 |
1805 |
Lifting capacity |
kN |
30 |
60 |
100 |
200 |
300 |
Lifting height |
mm |
120 |
160 |
210 |
300 |
350 |
Dimensions |
mm |
230 x 230 |
300 x 300 |
390 x 390 |
530 x 530 |
640 x 640 |
Insertion height |
mm |
27 |
27 |
27 |
27 |
27 |
Air requirement at 8 bar |
l |
16 |
38 |
90 |
250 |
470 |
Operating pressure |
bar |
8 |
8 |
8 |
8 |
8 |
Weight |
kg |
1,5 |
2,4 |
4,3 |
7,6 |
11,2 |
